Description
x| Item | 160KG Model | 320KG Model | 450KG Model | 900KG/day Model |
|---|---|---|---|---|
| Voltage | AC 220V 50Hz/60Hz | 3phase AC 380V 50Hz / 3phase AC 220V 60Hz | ||
| Total Power | 2.5KW | 3.3KW | 4.0KW | 5.8KW |
| Rated Current | 220V / 11.5A | 220V / 15A | 18.2A | 380V / 15.3A 220V / 26.4A |
| 24 Hours Capacity | 160KG / 20℃ | 320KG / 20℃ | 450KG / 20℃ | 900KG / 20℃ |
| Ice Cube Size | 22mm × 22mm × 22mm | |||
| Ice Mold Cell Number | 198 | 396 | 540 | 1080 |
| Compressor Power | 1P | 2P | 3P | 6P |
| Refrigerant | R404a | |||
| Ice Making Type | Circulating Spray | |||
| Cooling Type | Fan Cooling | |||
| Ice Tank Capacity | 110L | 150L | - | |
| Source Water | Municipal Water | |||
| Source Water Pressure | >0.2MPa | |||
| Source Water Flow Rate | >500L/H | |||
| Circulating Tank Refill Rate | >5L/min | |||
| Compressor Power | 1.1KW | |||
| Air Compressor Capacity | ≥6.2M³/H | |||
| Air Compressor Max Working Pressure | 0.8MPa | |||
| Air Tank Capacity | 30L | |||
| Ice Selling Way | Bag Ice + Bulk Ice | |||
| Price Method | Unit Price × Weight | |||
| Payment Method | IC Card / Bill / Coin / Give Change / GSM Remote Monitor (Can choose by needs) | |||

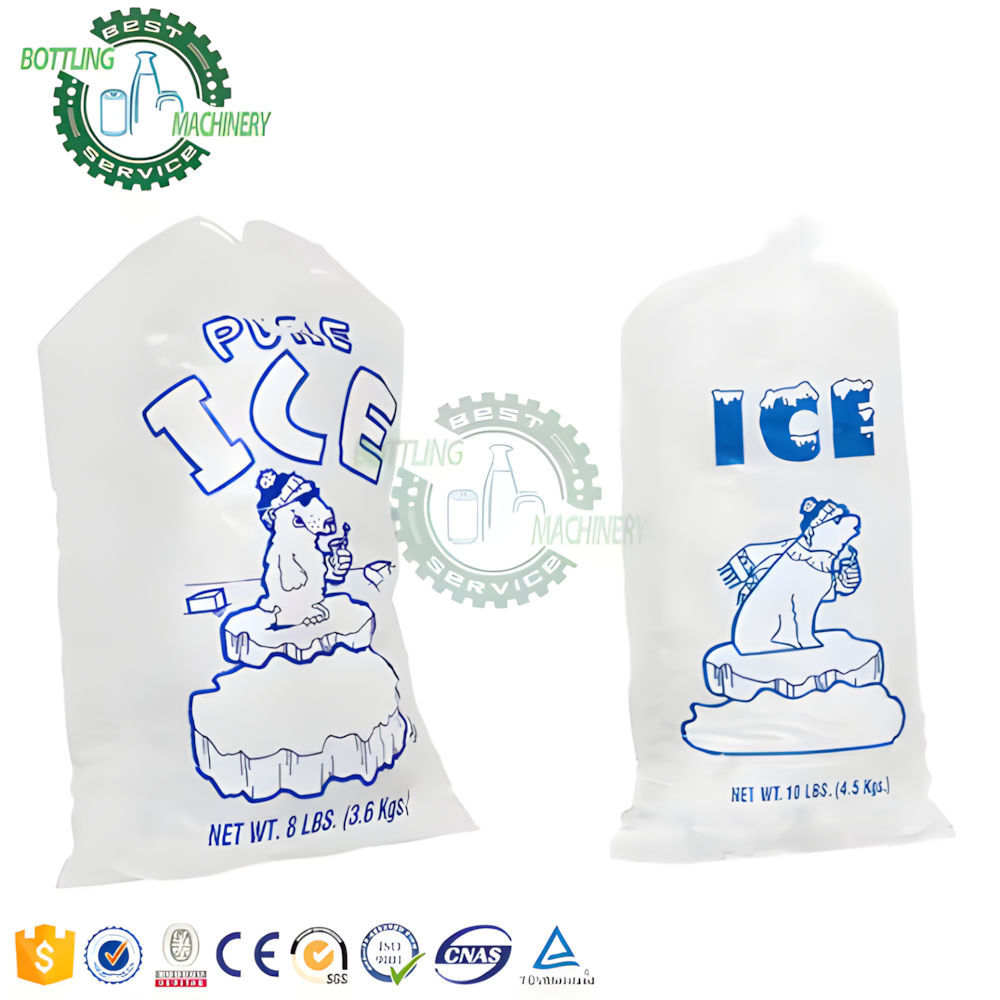

| Ice Bag Dimension | 1–4KG: 300mm × 560mm 5–7KG: 300mm × 750mm |
|||
| Bag Type | Break Even Roll Bag | |||
| Bag Qty per Roll | 300mm×560mm – 250 pcs/roll 300mm×750mm – 200 pcs/roll |
|||
| Machine Dimension | W110cm × D120cm × H230cm | W170cm × D135cm × H230cm | ||
| Inlet Water / Drainage | G1/2 Male Thread | |||

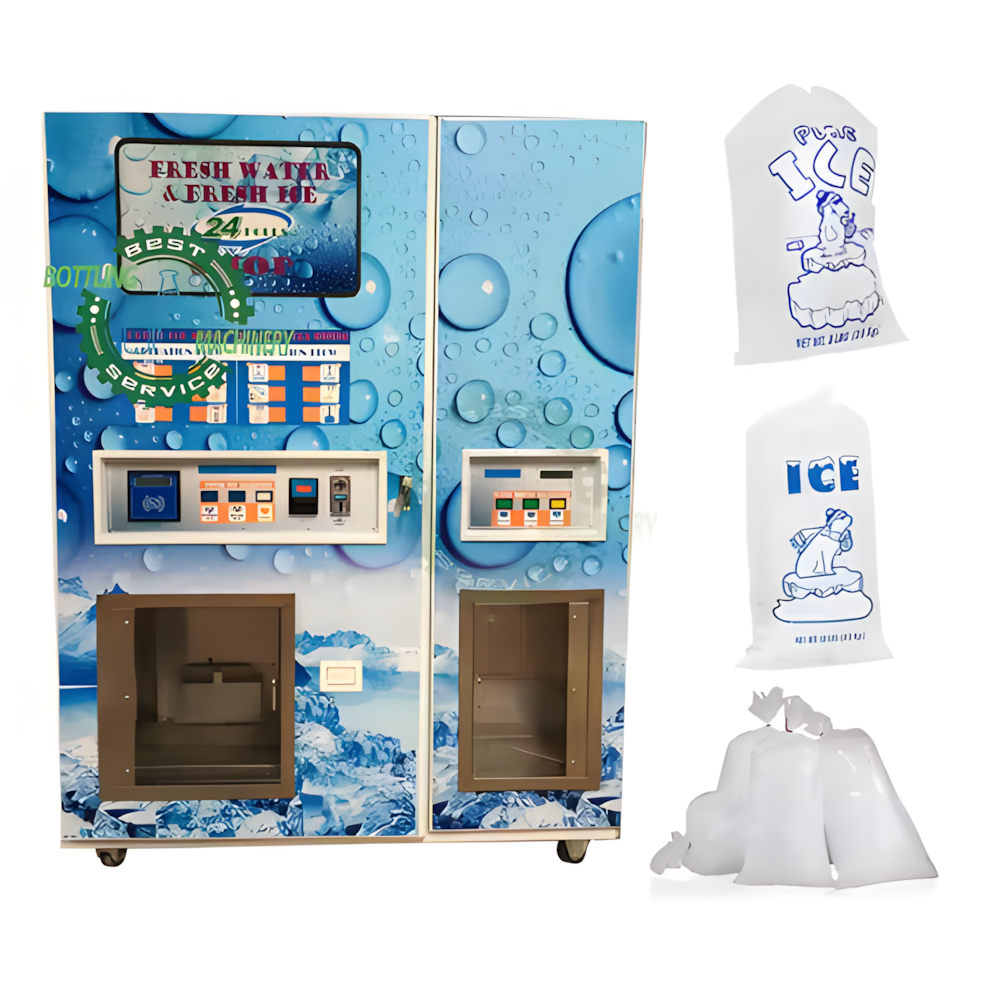

Self-service water and ice vending machine

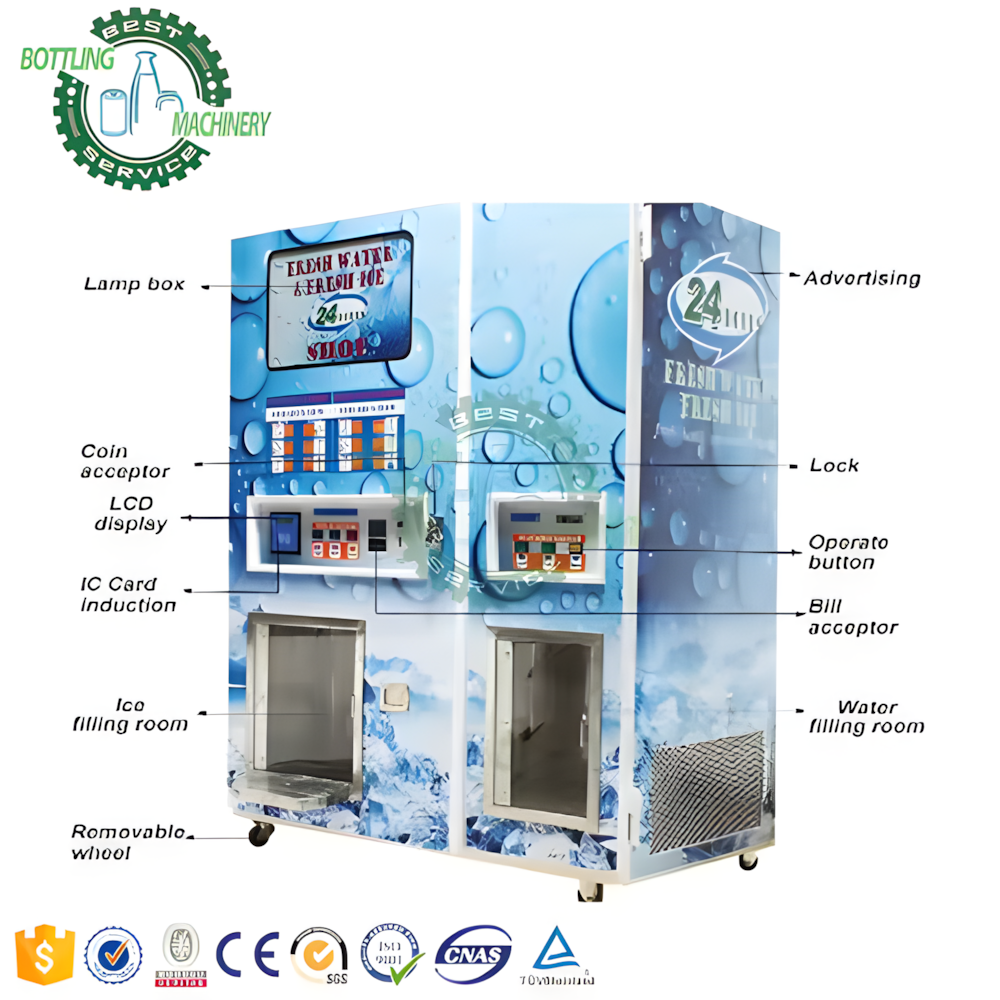

1. Luxurious waterproof steel cabinet, front-door-open design, safe and hygienic, durable and easy to install.
3. Advanced Intelligent coin, bill and IC card payment control system.
4. Fully automatic purification, ice making, ice packing and vending.
5. Highly efficient and stable bagging system, dispensing bag, filling ice in the bag and sealing the bag automatically.

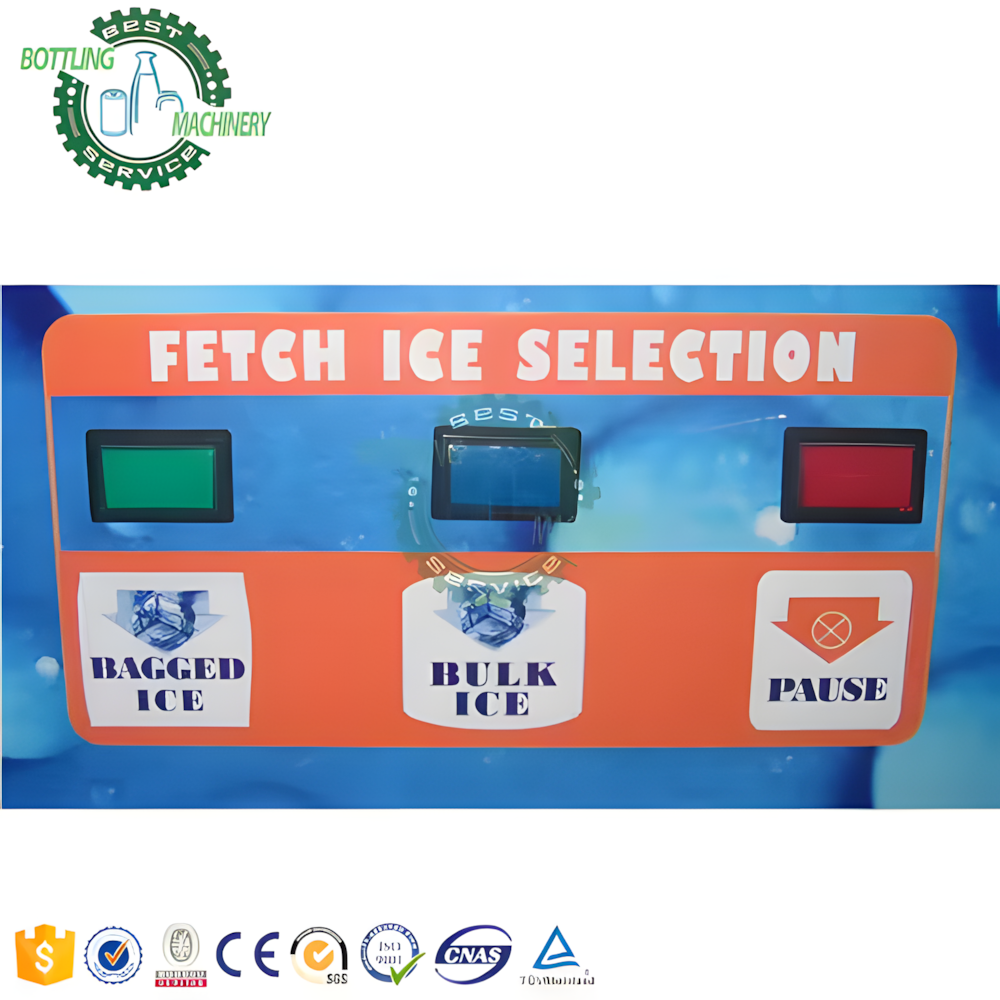

6. Optional bulk ice dispensing and auto bagged ice to meet customer’s requirements.
7. Automatic machine stop for water full and shortage of ice/water/bag with alarm.
8. Advanced Reverse Osmosis purification system, NSF standard.
User of RO production water machine want to replace filter element to keep water quality good for long time , the cycle of replacing filter element according to good or bad of water source and mineral composition ,or use water detector to check.
